LCA (Life Cycle Assessment) graphics

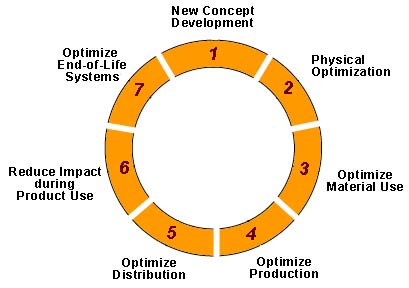

The Strategy Wheel goes by several additional names including LiDS (Lifecycle Design Strategy) Wheel and a Spiderweb Diagram. The names and categories of the spokes may vary, but the concept remains the same.

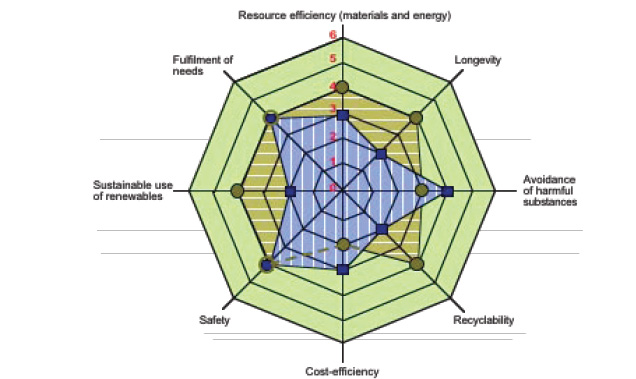

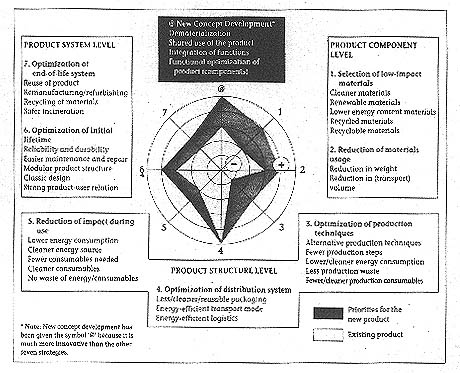

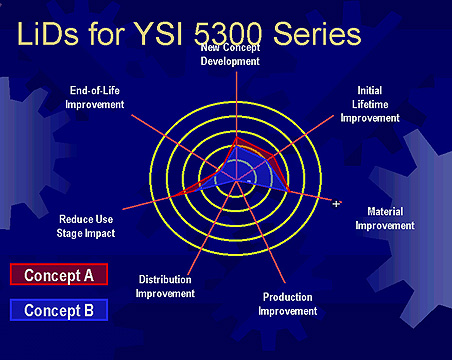

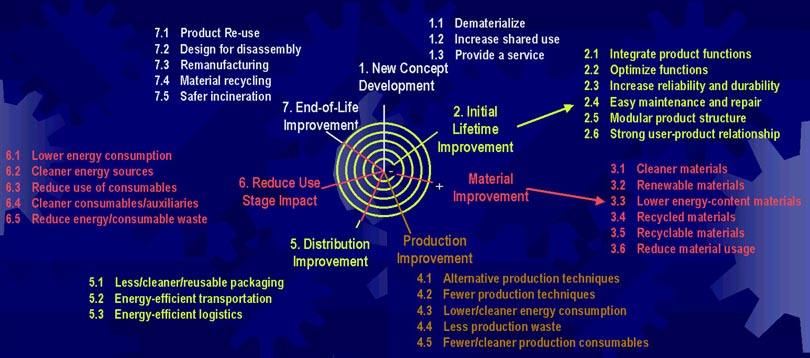

Strategy Wheel (above) is developed into a LiDS wheel like the examples below

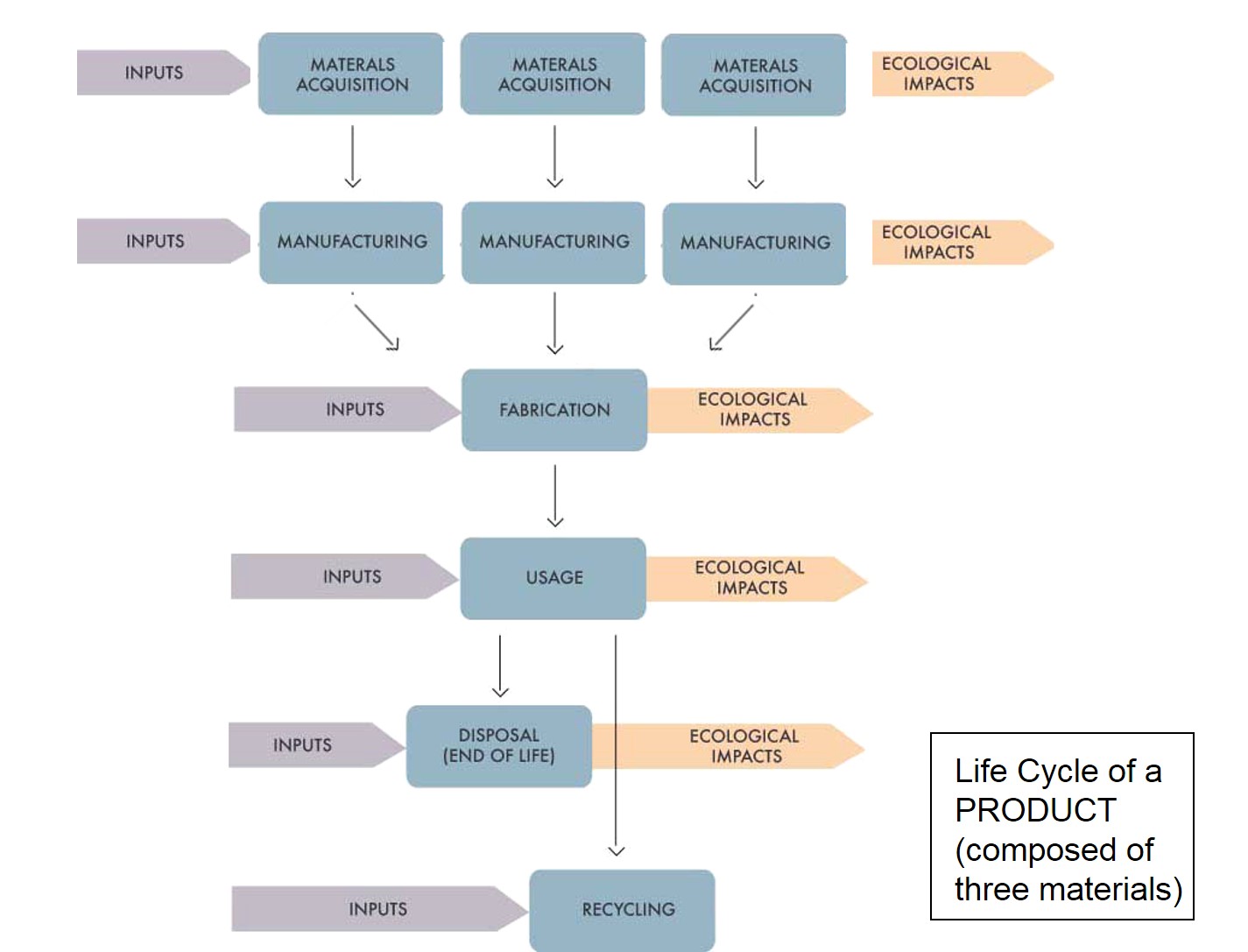

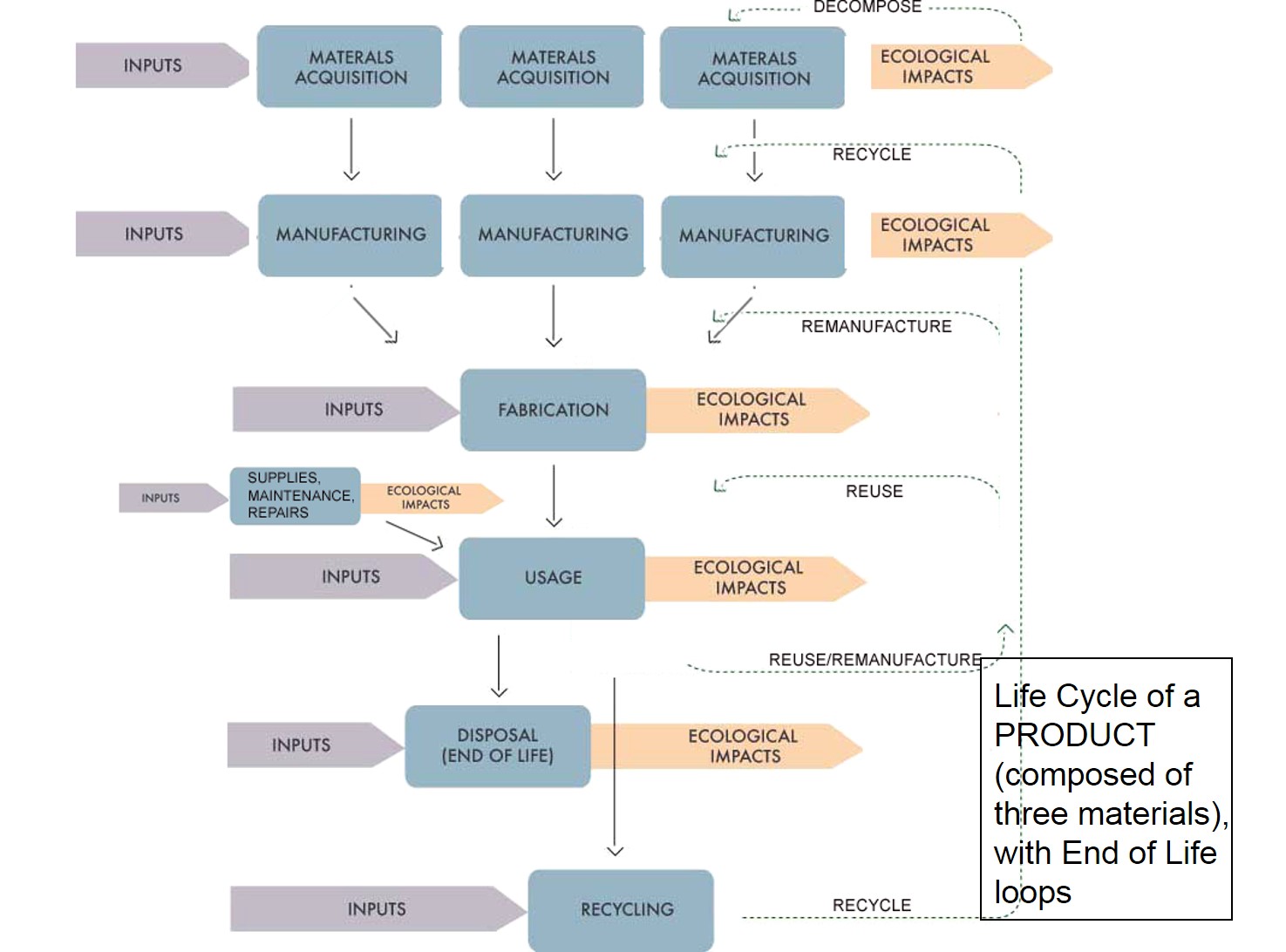

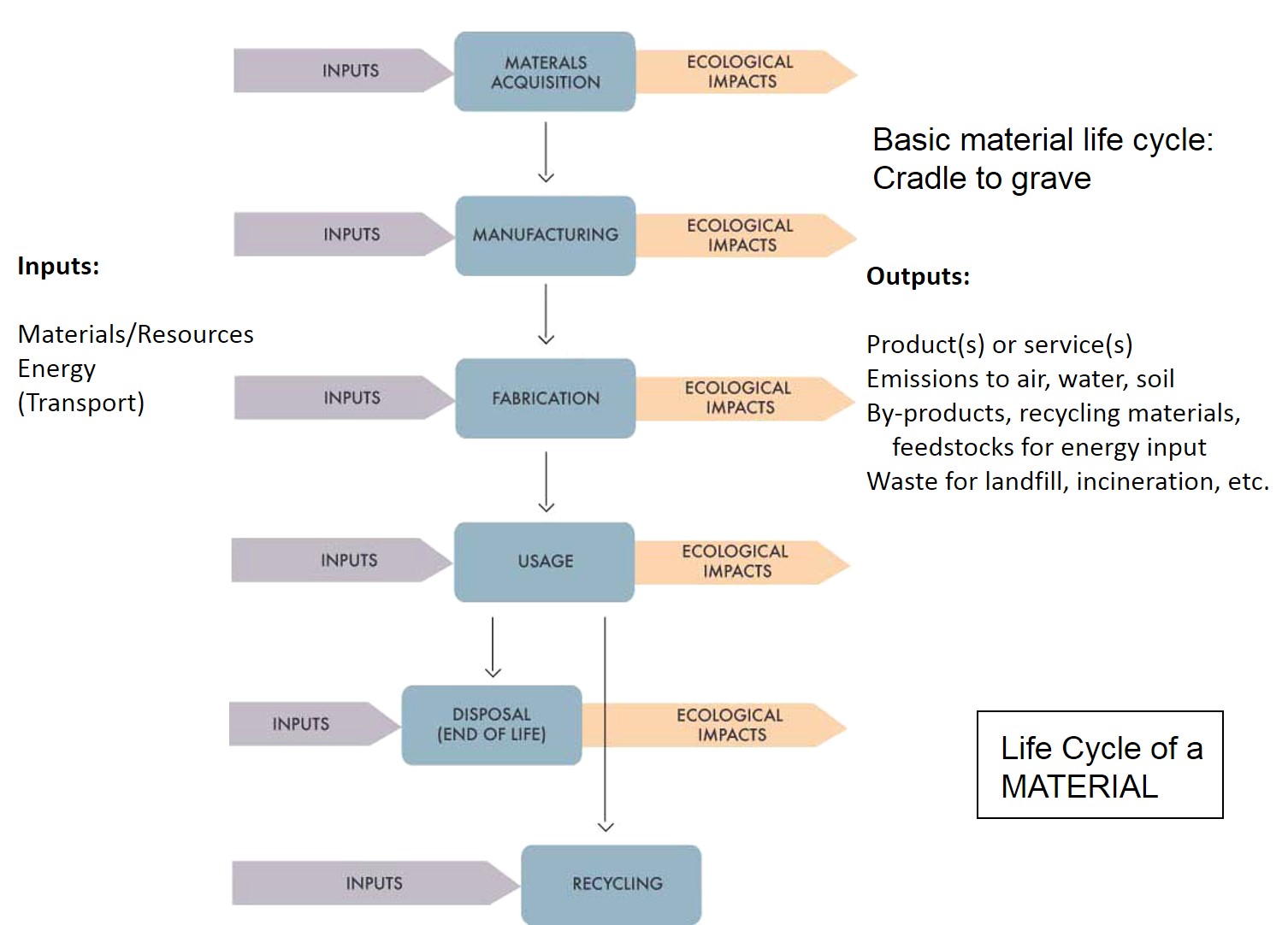

PROCESS TREE

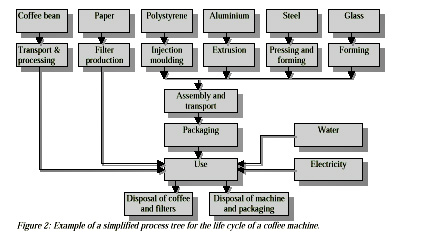

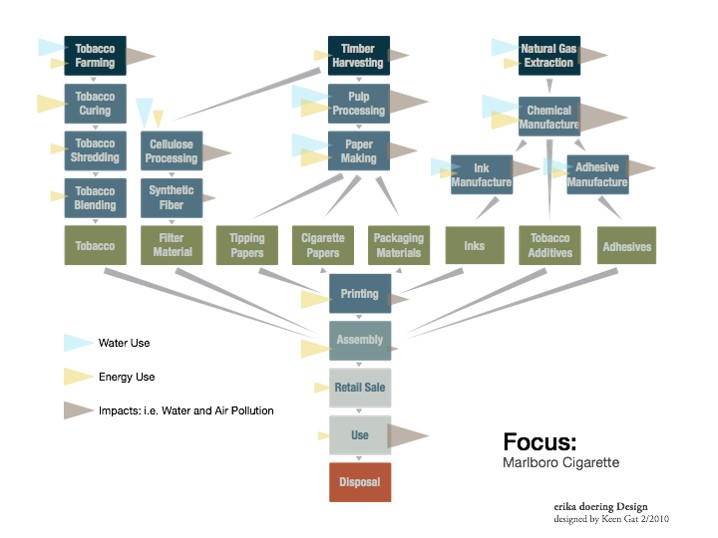

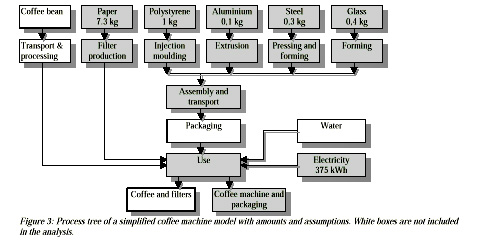

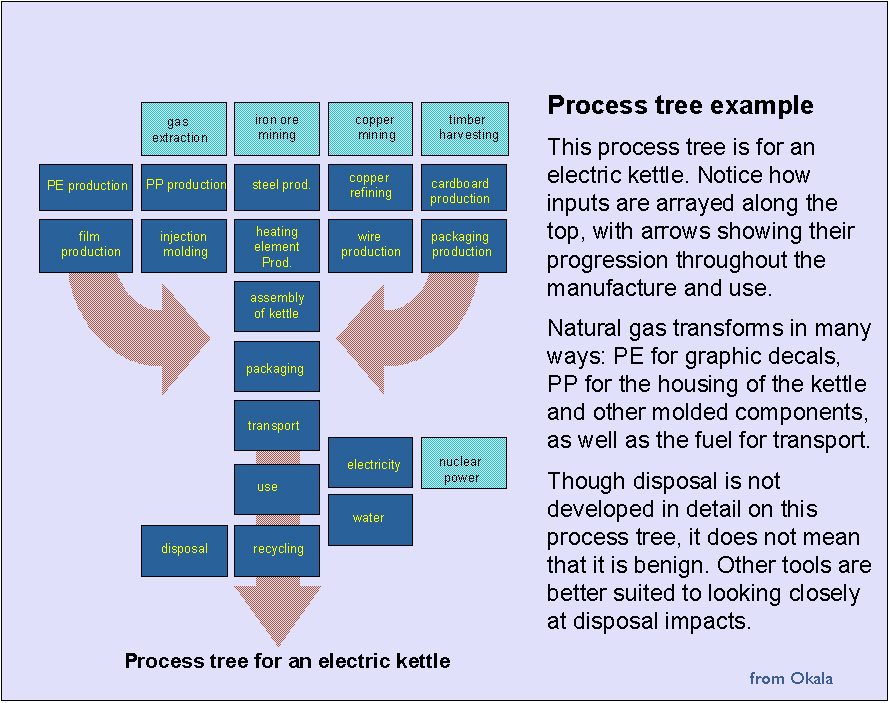

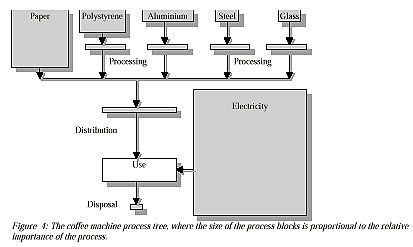

Some stages in developing a process tree:

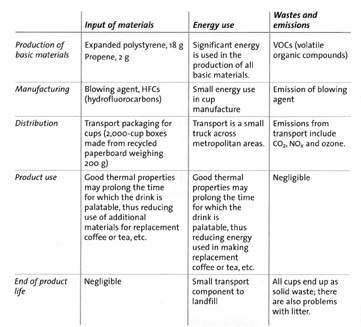

MET (Materials Energy Toxics) Matrix example:

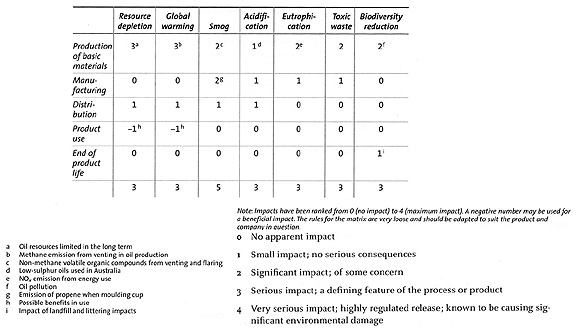

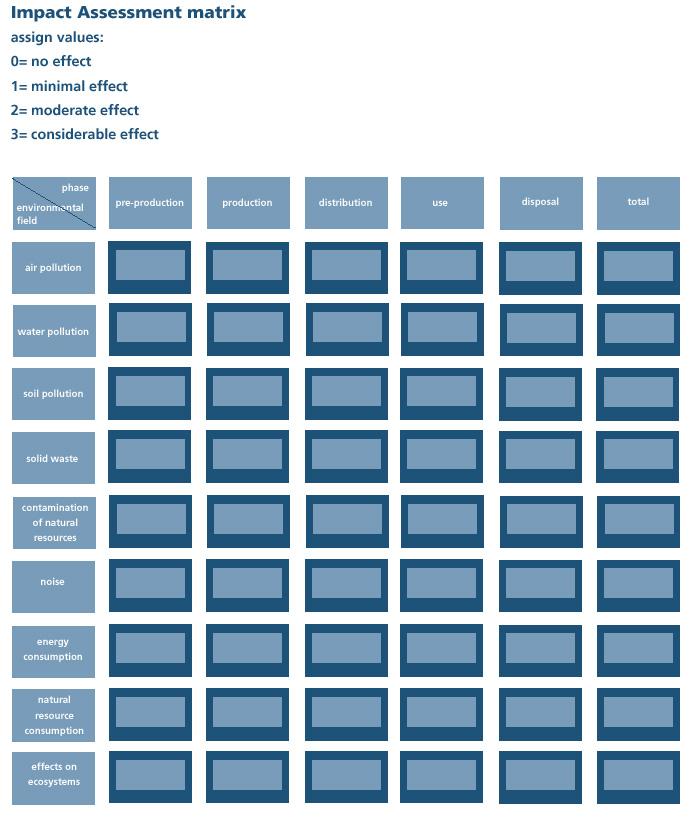

Impact Assessment Matrix examples:

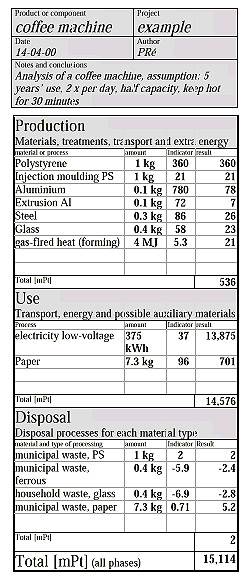

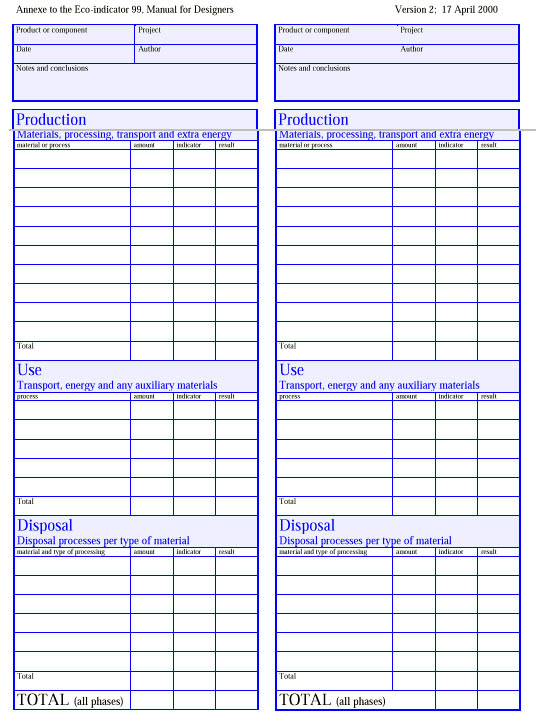

LCA forms (see PRe website for ECO-it)
